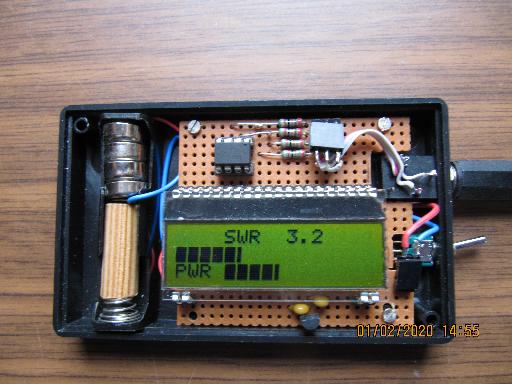

| The bar in the middle shows the SWR, the bar at the bottom the forward voltage (hence not really the power). |
| The supply current at 5V is only about 2mA. |
| The program is written in C and uses the avr-libc. Compile the program with the avr-gcc. The Makefile is only an example when using the avrdude and Atmels old AVR Starter Kit STK500. |

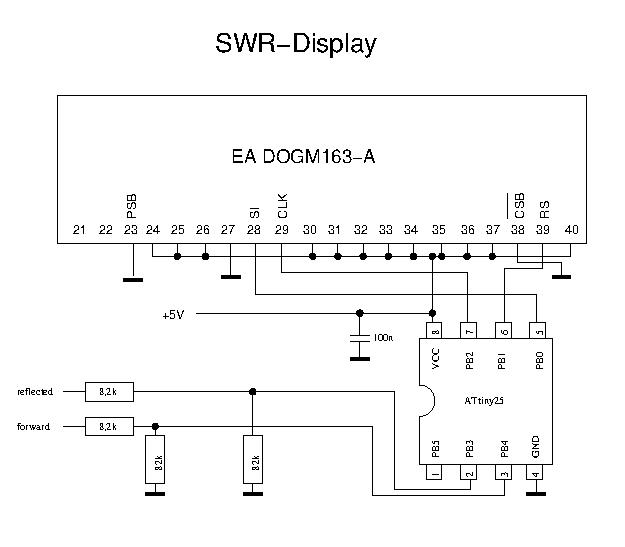

| swr-display-circuit.pdf |
| dircoupler.pdf |
| swr-bar2.c |
| Makefile |
